Authorised Distributor

Avaada PV Modules Supplier in India

AVN66G12G N type TOPCon bifacial module from 700 to 720 Wp. Supplied from our warehouses in Bengaluru, Hyderabad and Vijayawada to EPC companies, installers and commercial clients.

700 to 720 WpHigh power per module
Up to 23.18%Module efficiency
30 yearsLinear performance warranty
12 yearsProduct warranty
AVN66G12G

Why Specify This Module

Four points from the Avaada datasheet that matter to project returns.

01

N type TOPCon cells

N type substrate gives low LID, with module efficiency from 22.53% to 23.18%.

02

Bifacial glass to glass

80 ± 5% bifaciality. Avaada states up to 30% additional power gain, depending on ground reflectivity.

03

132 cells, 18 busbars

Multi busbar layout in a 2384 × 1303 mm module with an IP68 junction box.

04

30 year linear warranty

Annual degradation of 0.40% after year one, leaving at least 87.4% output at year 30.

01

AVN66G12G

700 to 720 Wp · N type TOPCon bifacial · 132 cells · Glass to glass

  • Up to 23.18% efficiency
  • 30 year linear performance warranty
  • 80 ± 5% bifaciality

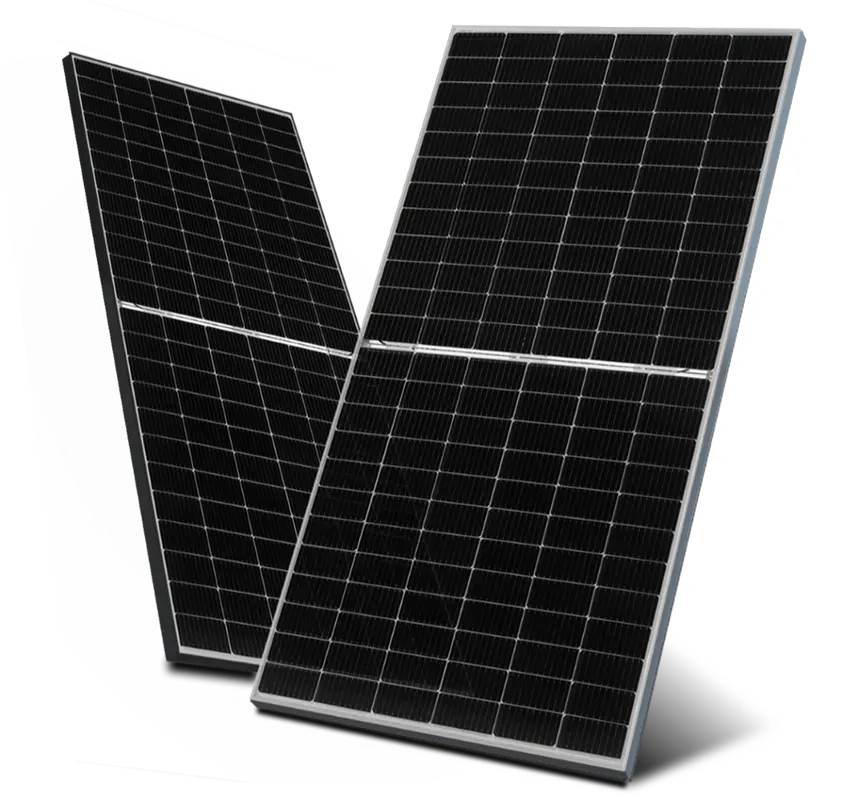

Avaada AVN66G12G 700 to 720 Wp N type TOPCon bifacial glass to glass solar module

Electrical parameters at STC

AVN66G12G electrical parameters at STC
Parameter700 Wp705 Wp710 Wp715 Wp720 Wp
Peak power Pmax (Wp)700705710715720
Voltage at Pmax Vmpp (V)40.540.740.941.141.3
Current at Pmax Impp (A)17.2917.3317.3617.4017.43
Open circuit voltage Voc (V)48.248.448.648.849.0
Short circuit current Isc (A)18.3218.3618.4018.4418.48
Module efficiency (%)22.5322.7022.8623.0223.18
Pmax at NOCT (Wp)534538542546550

STC: 1000 W/m², 25°C cell temperature, AM1.5. Power tolerance 0 to +5 W. Measuring tolerance ±3%. NOCT: 800 W/m², 20°C ambient, wind 1 m/s. Electrical data as printed on the manufacturer datasheet, without guarantee.

Mechanical specifications

AVN66G12G mechanical specifications
Cell typeN type TOPCon, bifacial, 18 busbar MBB
Number of cells132
Dimensions2384 × 1303 × 35 mm
Weight38 kg
Front glass2.0 mm AR coated
Back glass2.0 mm semi tempered
EncapsulantPOE / EPE / EVA
FrameAnodised aluminium alloy
Junction boxIP68, split, 3 bypass diodes
Cables and connectors4 mm² solar cable, 300 mm or custom length, MC4 compatible
Bifaciality factor80 ± 5%
Maximum system voltage1500 V DC
Operating temperature−40°C to +85°C

Temperature coefficients

AVN66G12G temperature coefficients
Pmax coefficient−0.30%/°C
Voc coefficient−0.25%/°C
Isc coefficient0.04%/°C
NOCT45 ± 2°C

Warranty

AVN66G12G warranty
Product warranty12 years
Performance warranty30 years, linear
First year degradation1.00%
Annual degradation, years 2 to 300.40% per year
Output at end of warranty87.4%

Packaging

AVN66G12G packaging
Modules per pallet31
Pallets per 40 ft HC container20
Modules per container620
Quality and Compliance

Standards on the Datasheet

Standards listed on the Avaada datasheet. Some certificates are marked in process by the manufacturer, so refer to the datasheet for current status.

  • IEC 61215
  • IEC 61730
  • UL 61730
  • IEC 62804
  • IEC 61701
  • IEC 61716
  • IEC 62782
  • IEC 60068
  • CEC
FAQ

Avaada Questions

Quick answers on the module, warranty and supply.

What is the Avaada AVN66G12G?

The AVN66G12G is an N type TOPCon bifacial glass to glass module from 700 to 720 Wp. It uses 132 cells with 18 busbars and reaches up to 23.18% module efficiency.

What warranty does the Avaada module carry?

The module carries a 12 year product warranty and a 30 year linear performance warranty. First year degradation is 1.00%, then 0.40% per year, leaving 87.4% output at year 30. Refer to Avaada's warranty document for full terms.

Where can I buy Avaada modules in South India?

Eco Amp Solutions is an authorised Avaada distributor. Stock ships from our warehouses in Bengaluru, Hyderabad and Vijayawada, and standard orders dispatch within 24 to 48 hours.

How many modules fit in one container?

A 40 ft HC container holds 620 modules, packed 31 per pallet across 20 pallets.

Is the module size different from other brands?

At 2384 × 1303 × 35 mm and 38 kg, the AVN66G12G is wider and heavier than the Vikram Solar and Goldi Solar models we supply. Confirm your mounting structure and handling plan before you order.

Can I download the datasheet?

Yes. The specifications section on this page has a Download Datasheet button with the manufacturer datasheet in PDF format.
